Permanently Installed Fitness Stations Built to EN 16630 Performance Standards
We design and construct premium outdoor gym parks. Utilizing advanced bodyweight resistance kinematic systems, weatherproof hot-dip galvanized steel columns, self-lubricating sealed bearings, and shock-absorbing rubber safety surfaces, we build durable fitness areas.
Permanently installed outdoor fitness equipment requires weather resistance, self-lubricating sealed bearings, and solid base anchoring to ensure user safety.
Elite International Sports specializes in turnkey design and installation of outdoor fitness parks. Standard gym equipment rusts and breaks down under sun and rain exposure. We supply professional outdoor bodyweight workout stations constructed from heavy-wall galvanized steel tubes, finished with double electrostatic powder coating to prevent weathering.
Our equipment features bodyweight-based resistance mechanisms, avoiding moving weight plates. We use self-lubricating, dust-sealed ball bearings inside pivot hinges to ensure maintenance-free operations. We align layout designs with European Standard EN 16630.
Beyond the physical workout stations, we install shock-absorbing EPDM safety floors and info signboards, helping municipal corporations, school boards, and residential societies build durable outdoor health parks.
Bodyweight swing stations mounted over concrete foundation anchor blocks.

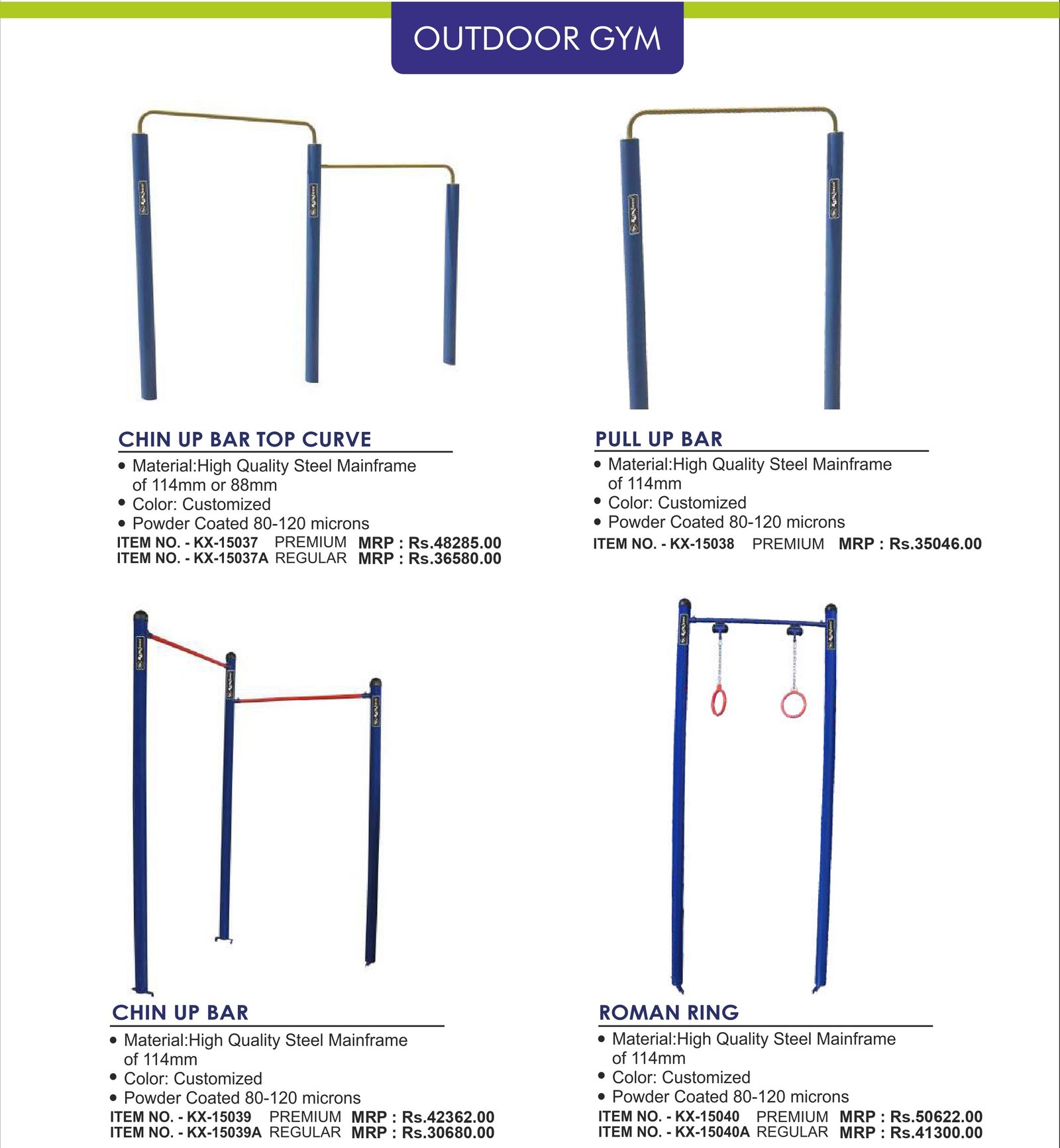

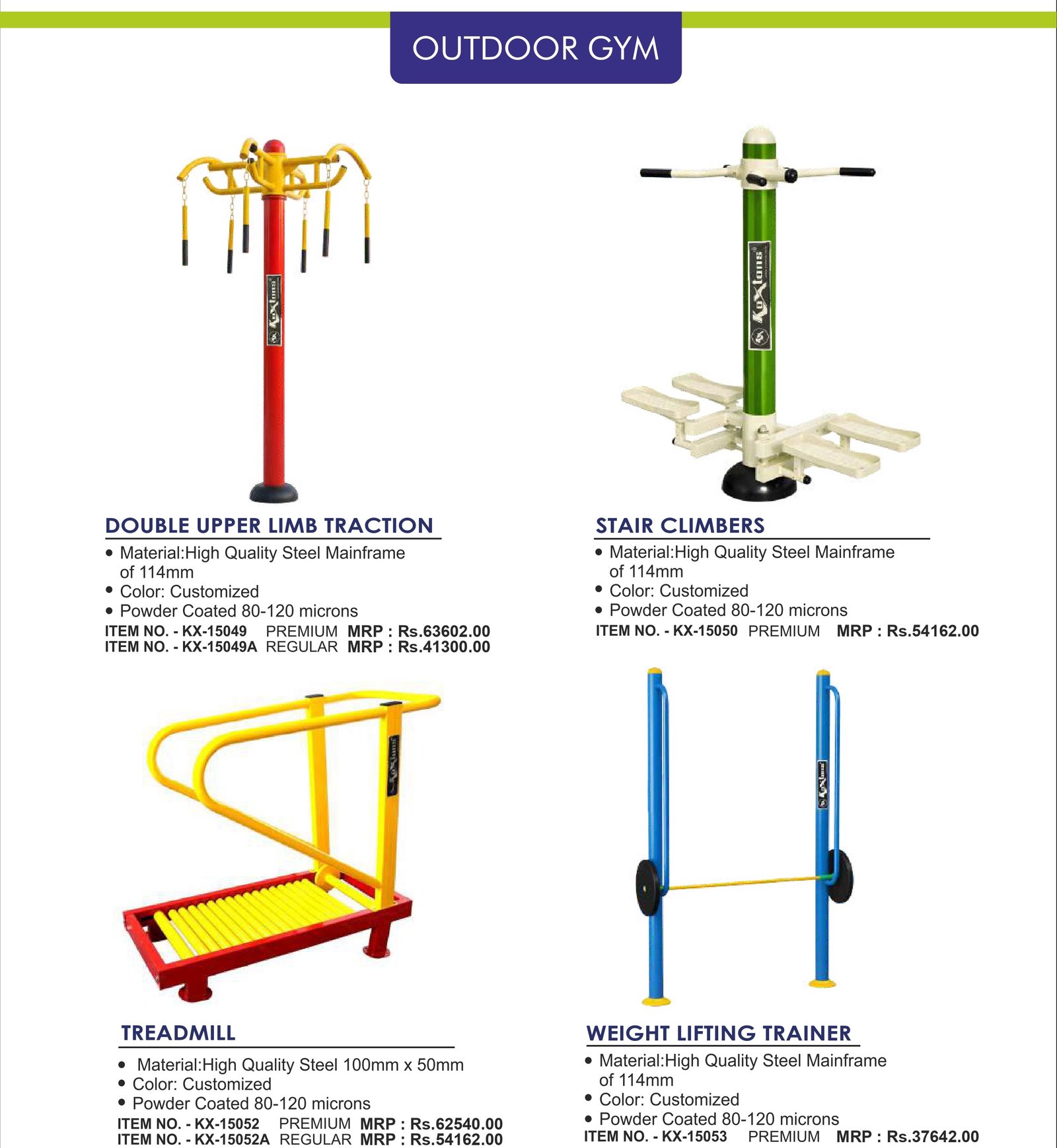

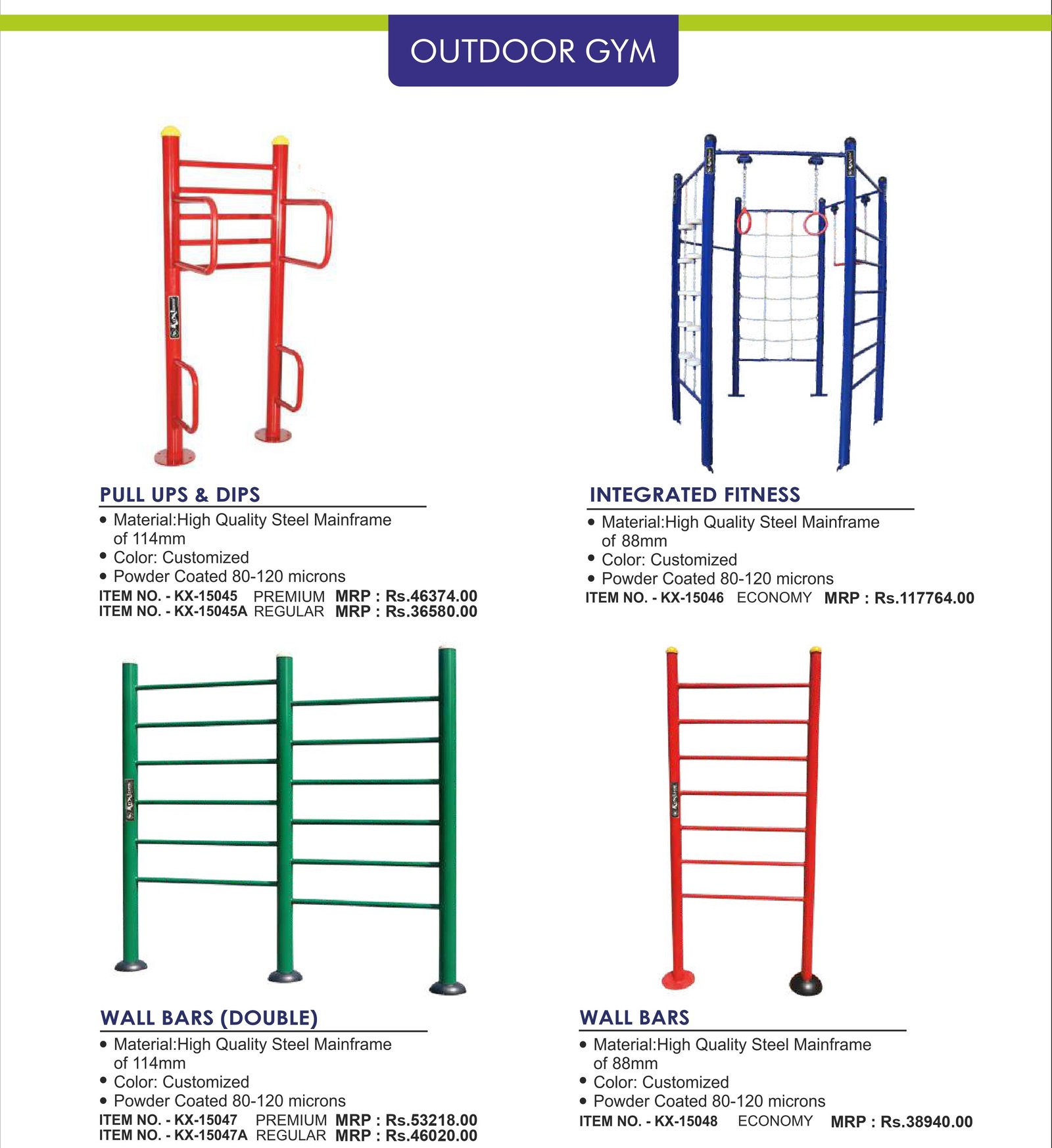

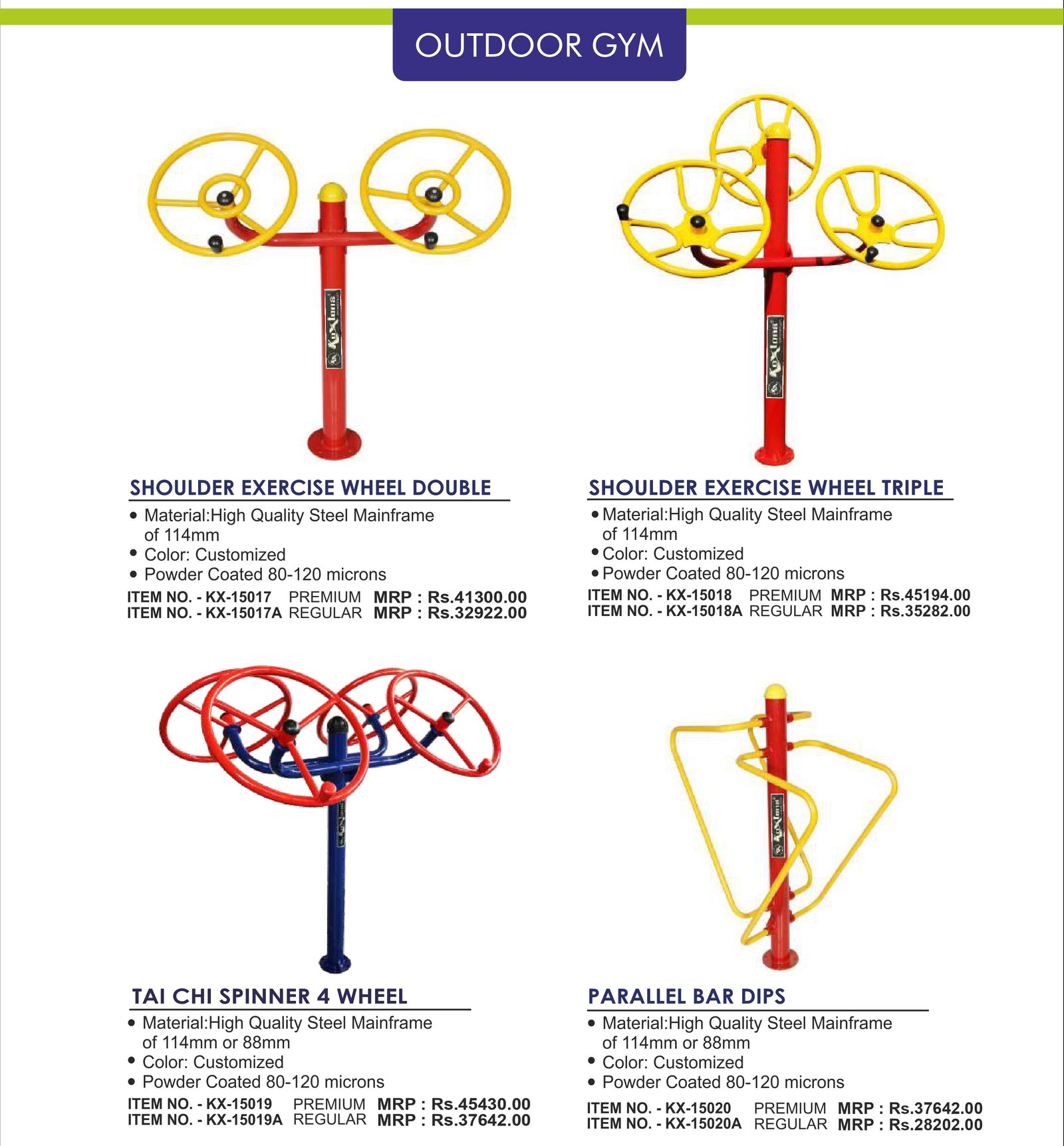

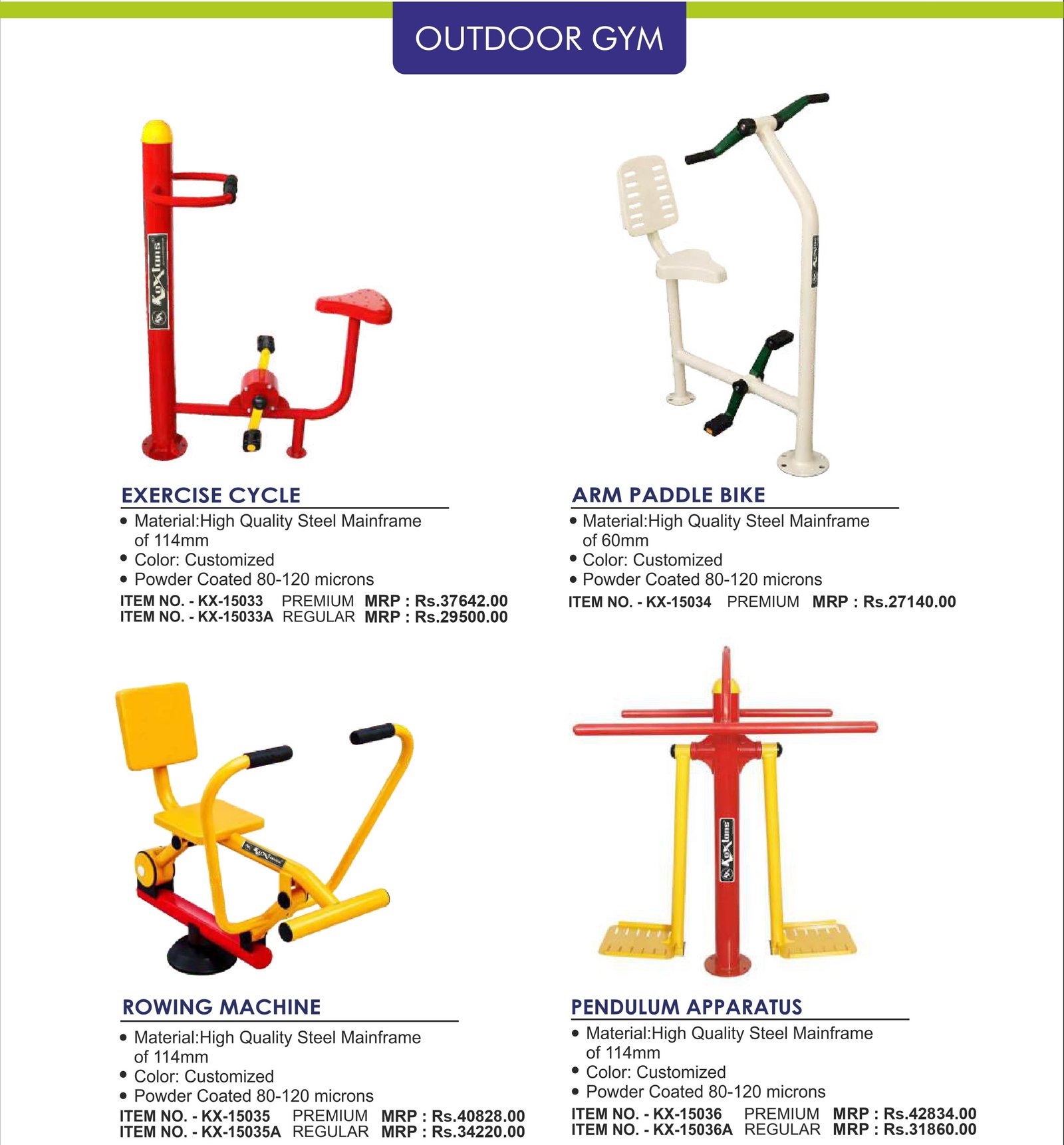

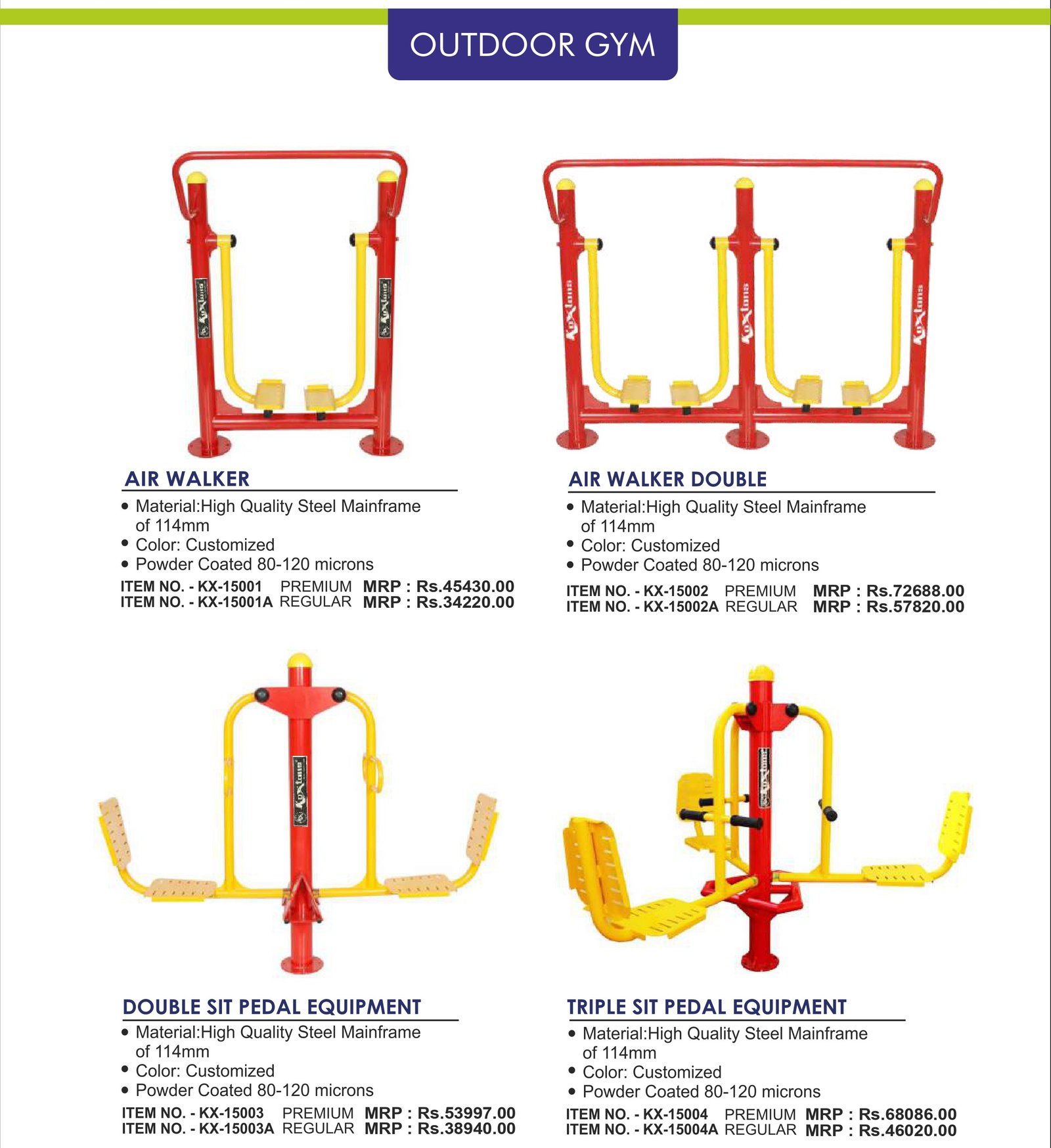

Browse pages from our premium Outdoor Gym equipment catalogue. Click any page to expand, zoom, and view full specifications, dimensions, and accessories.
_pages-to-jpg-0197.jpg)

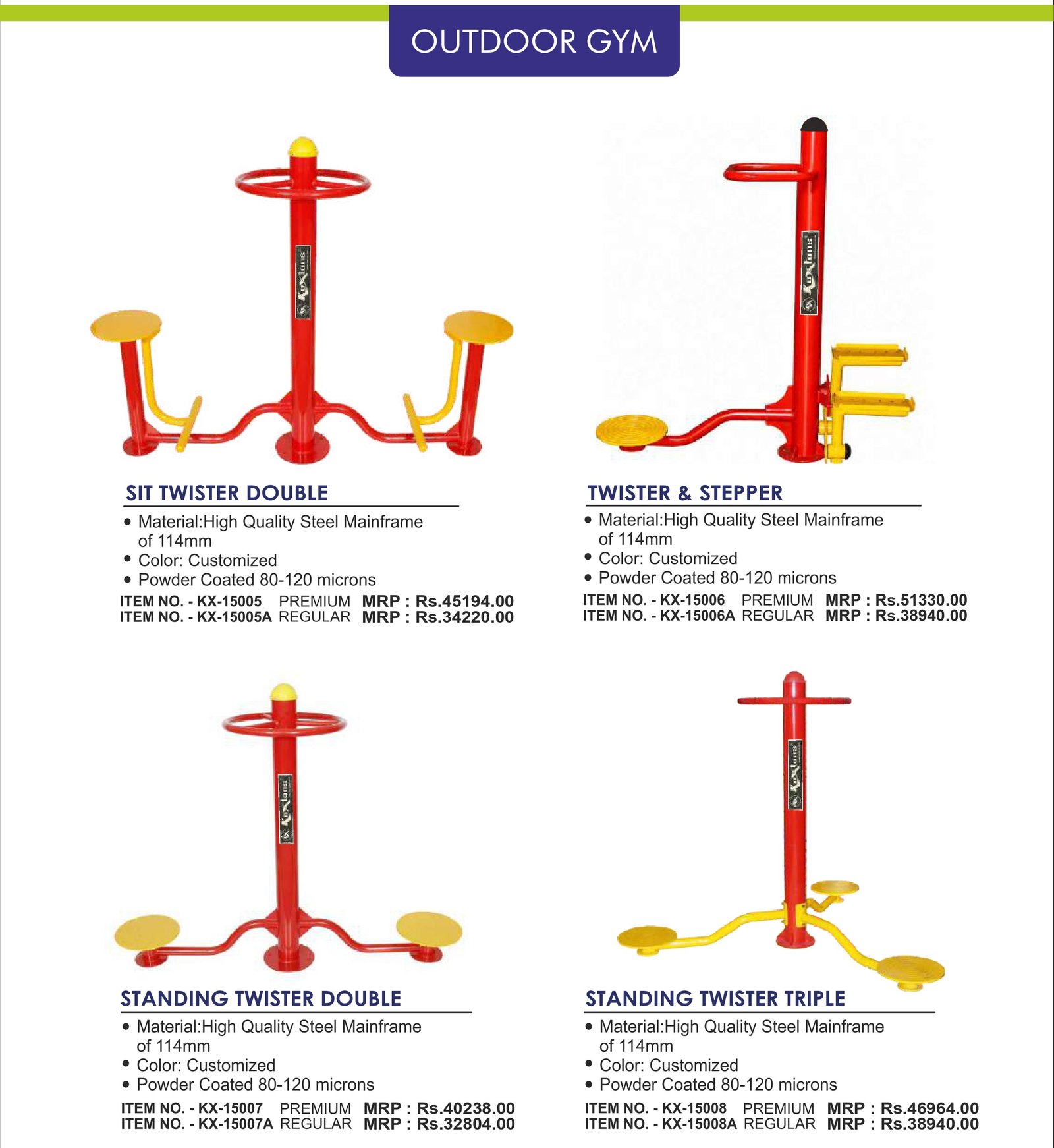

_pages-to-jpg-0198.jpg)

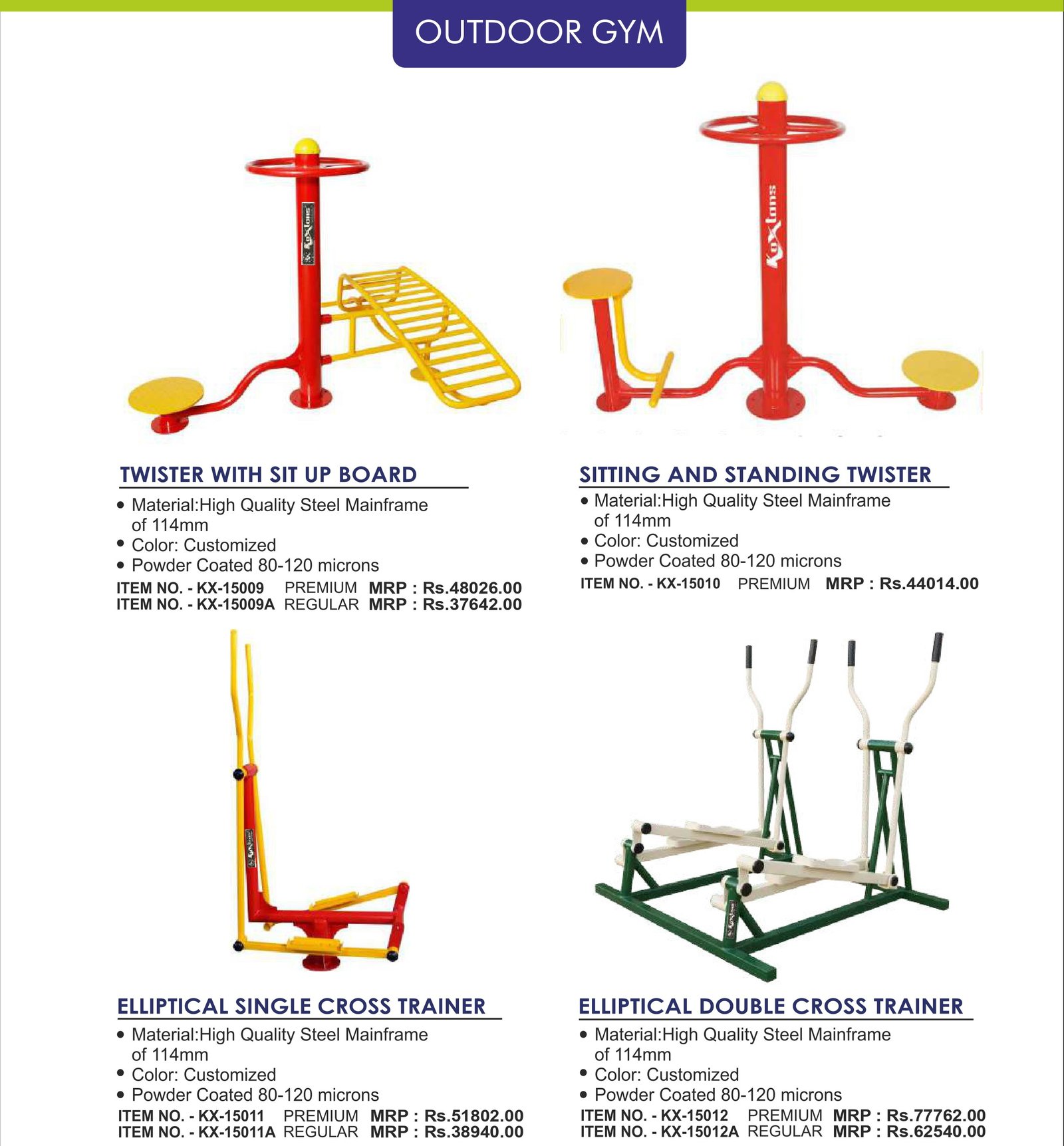

_pages-to-jpg-0199.jpg)

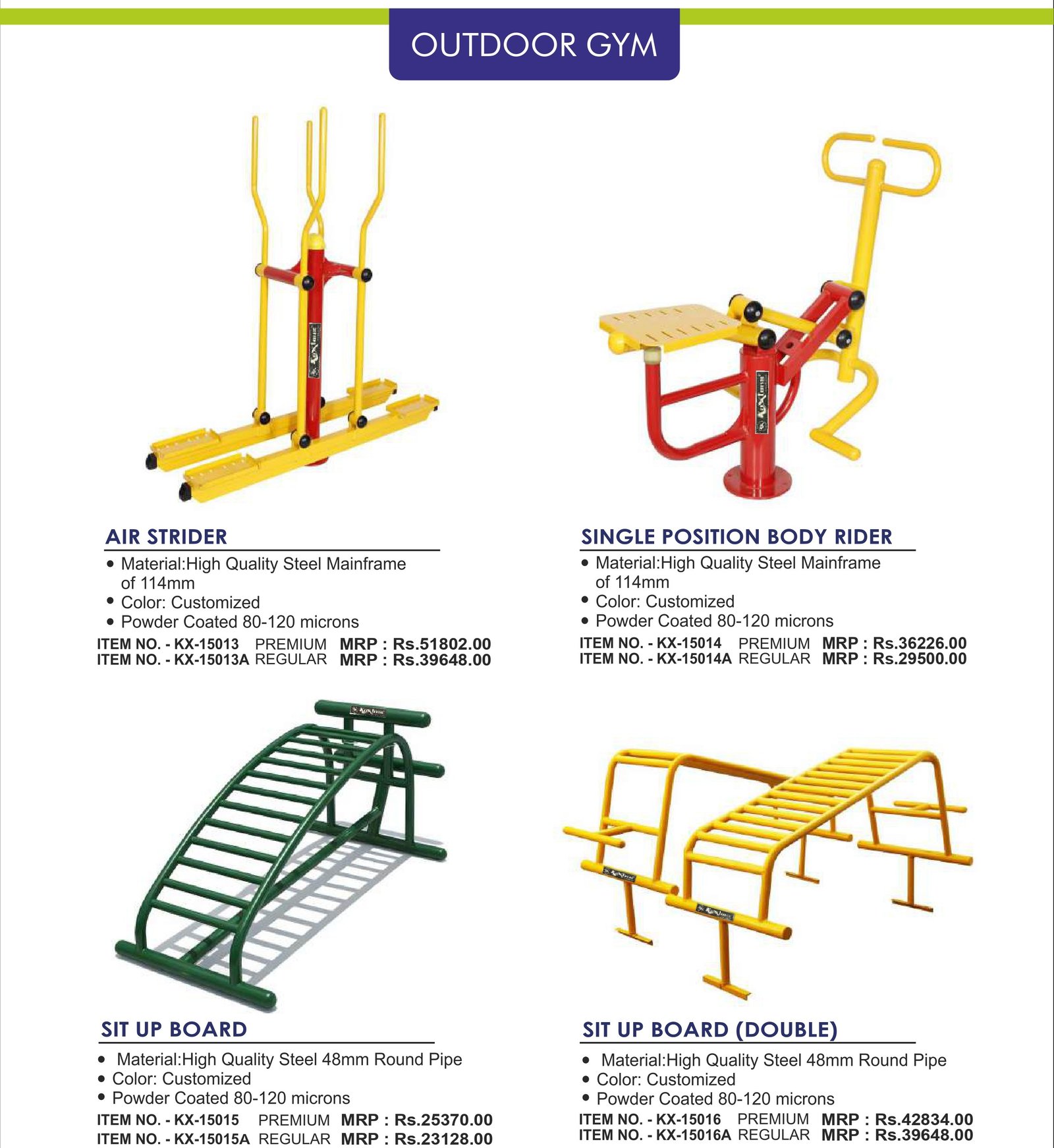

_pages-to-jpg-0200.jpg)
_pages-to-jpg-0201.jpg)

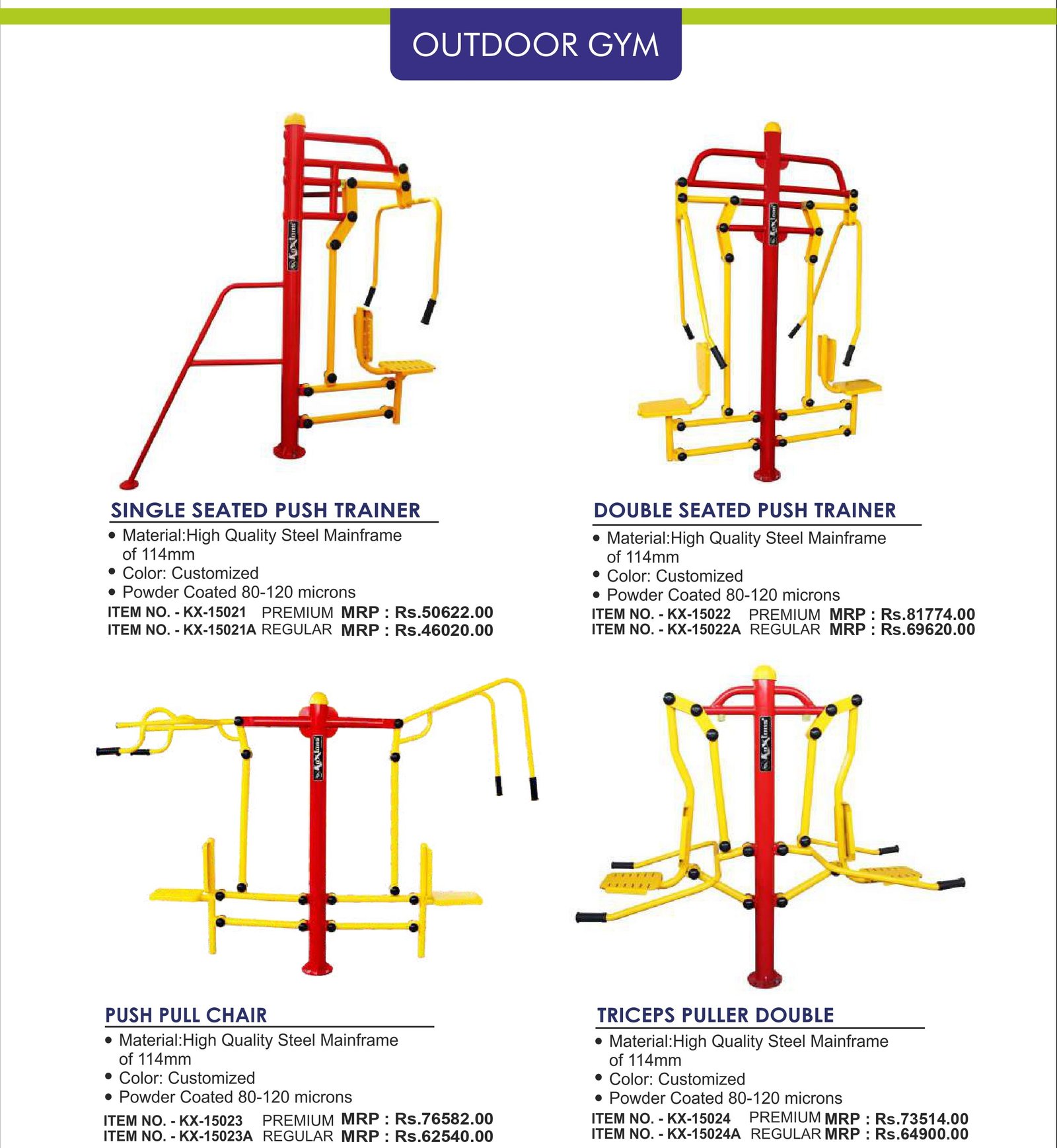

_pages-to-jpg-0202.jpg)

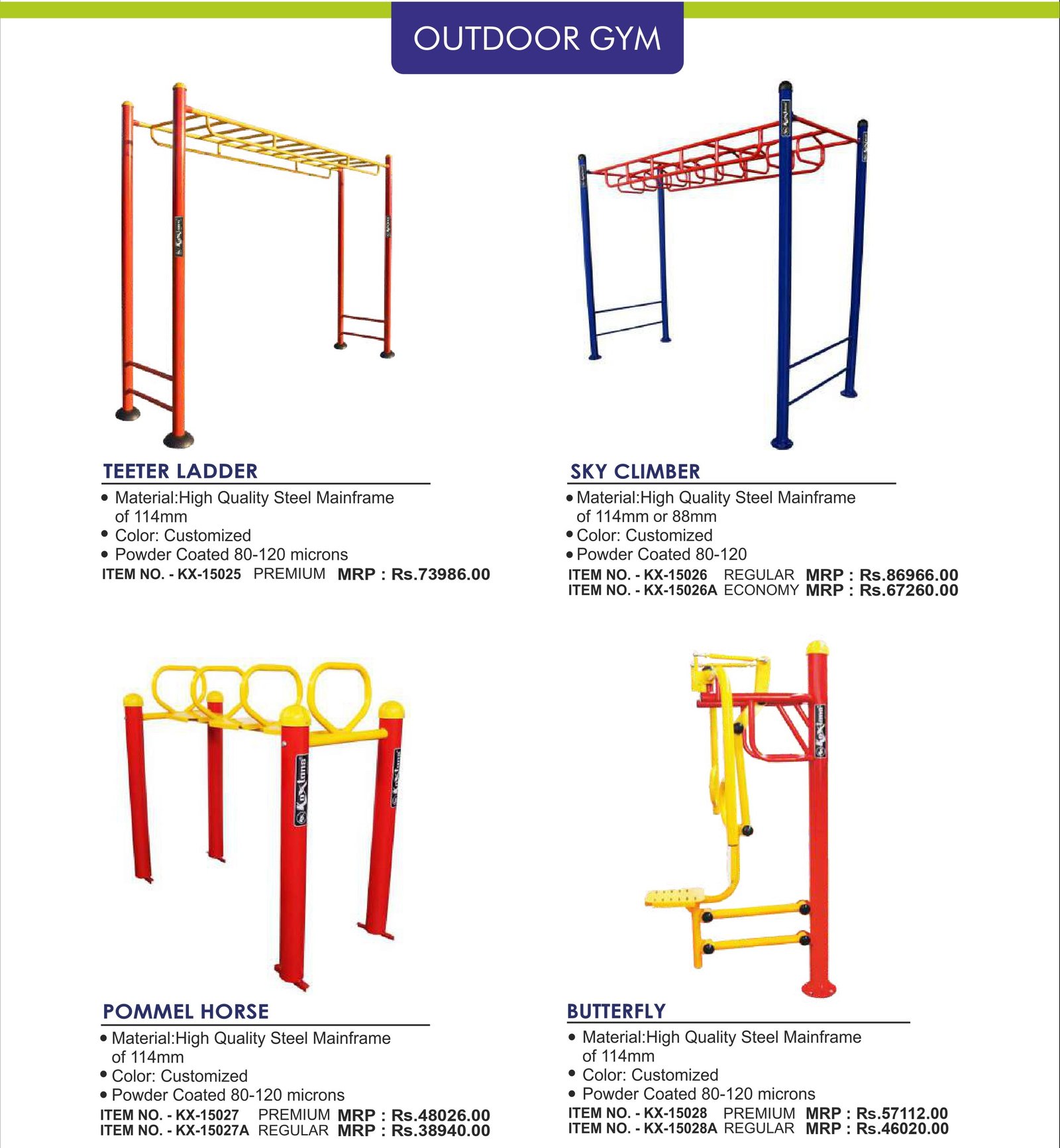

_pages-to-jpg-0203.jpg)

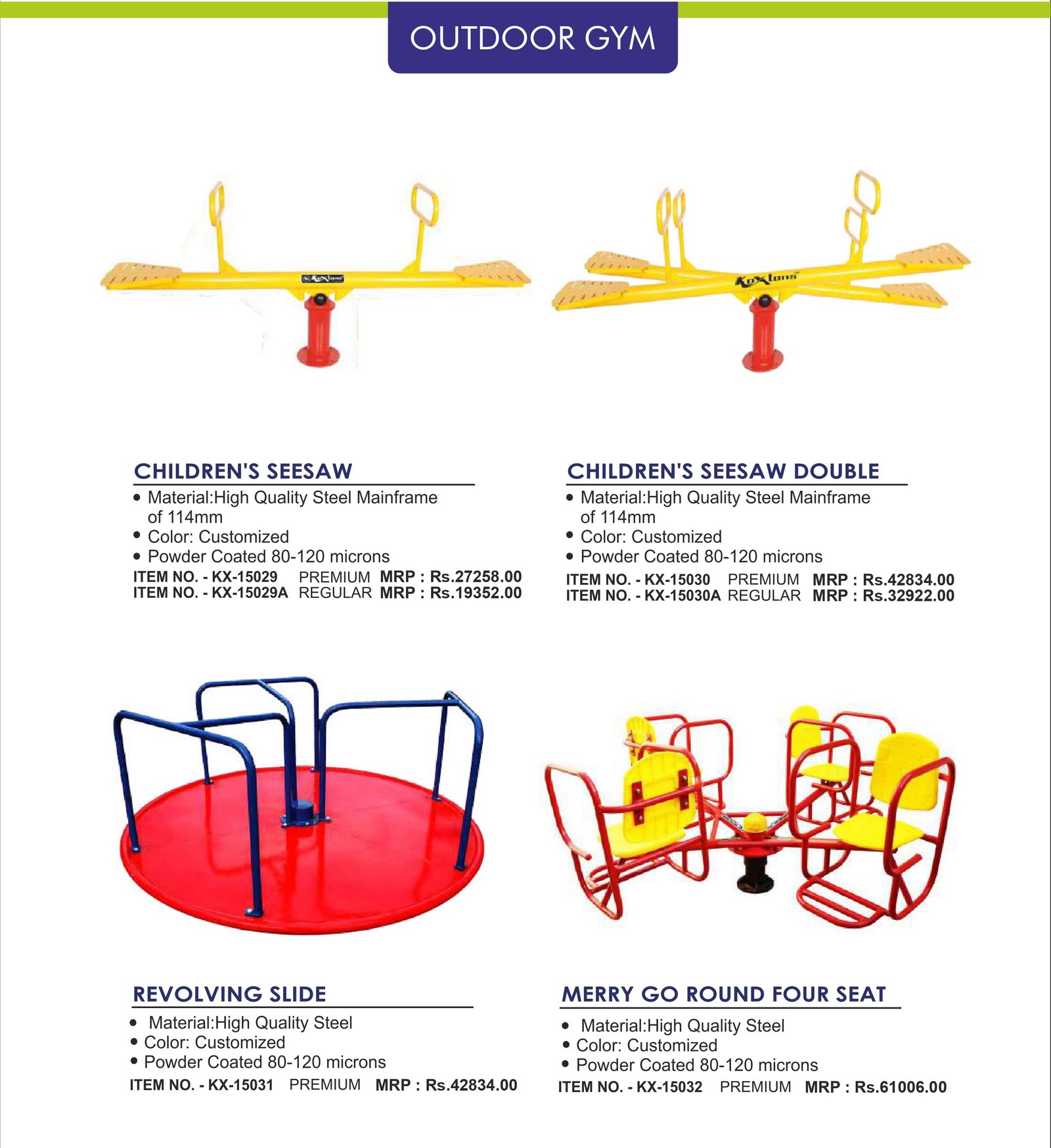

_pages-to-jpg-0204.jpg)
_pages-to-jpg-0205.jpg)
_pages-to-jpg-0206.jpg)

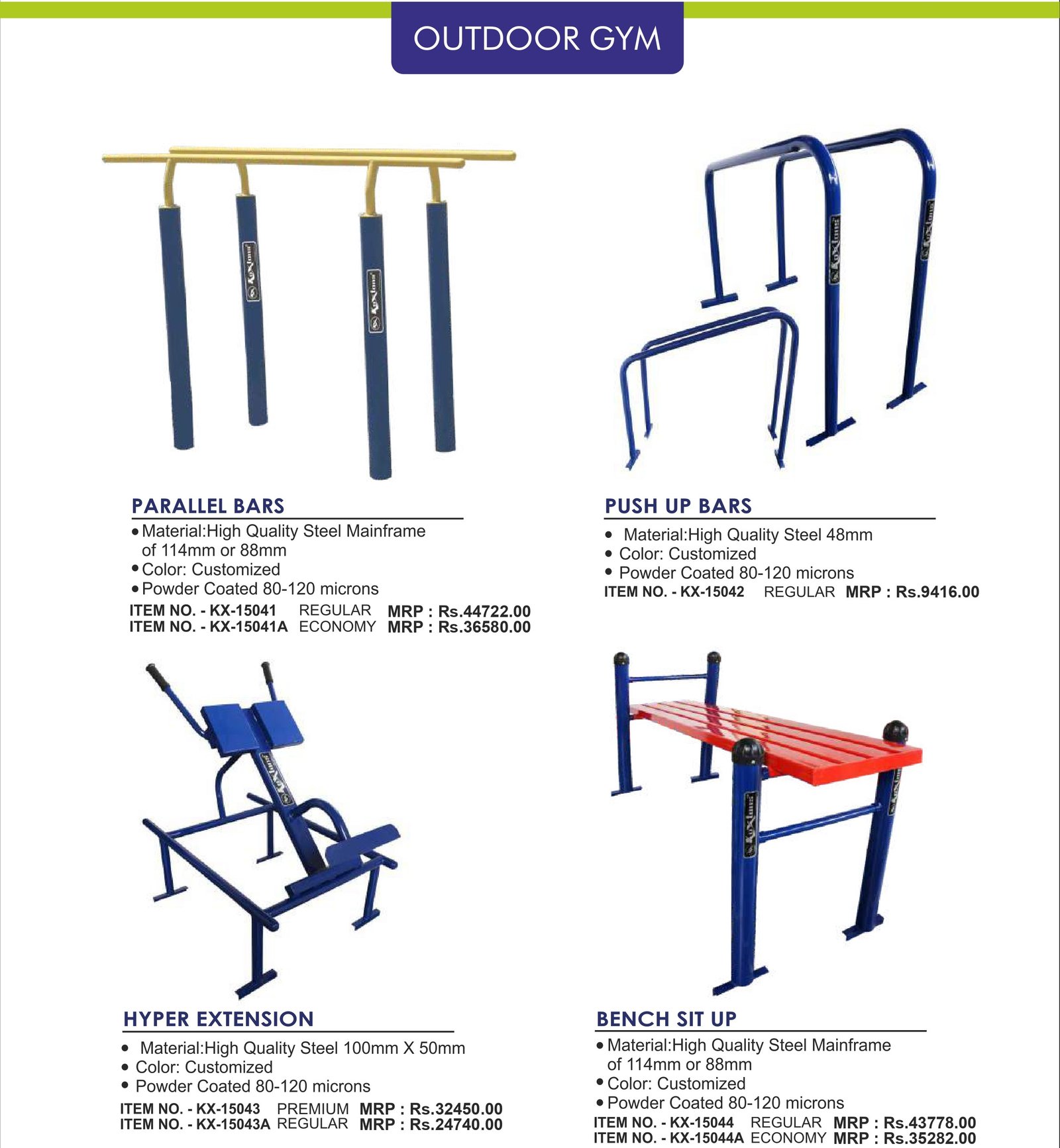

_pages-to-jpg-0207.jpg)
_pages-to-jpg-0208.jpg)
_pages-to-jpg-0209.jpg)

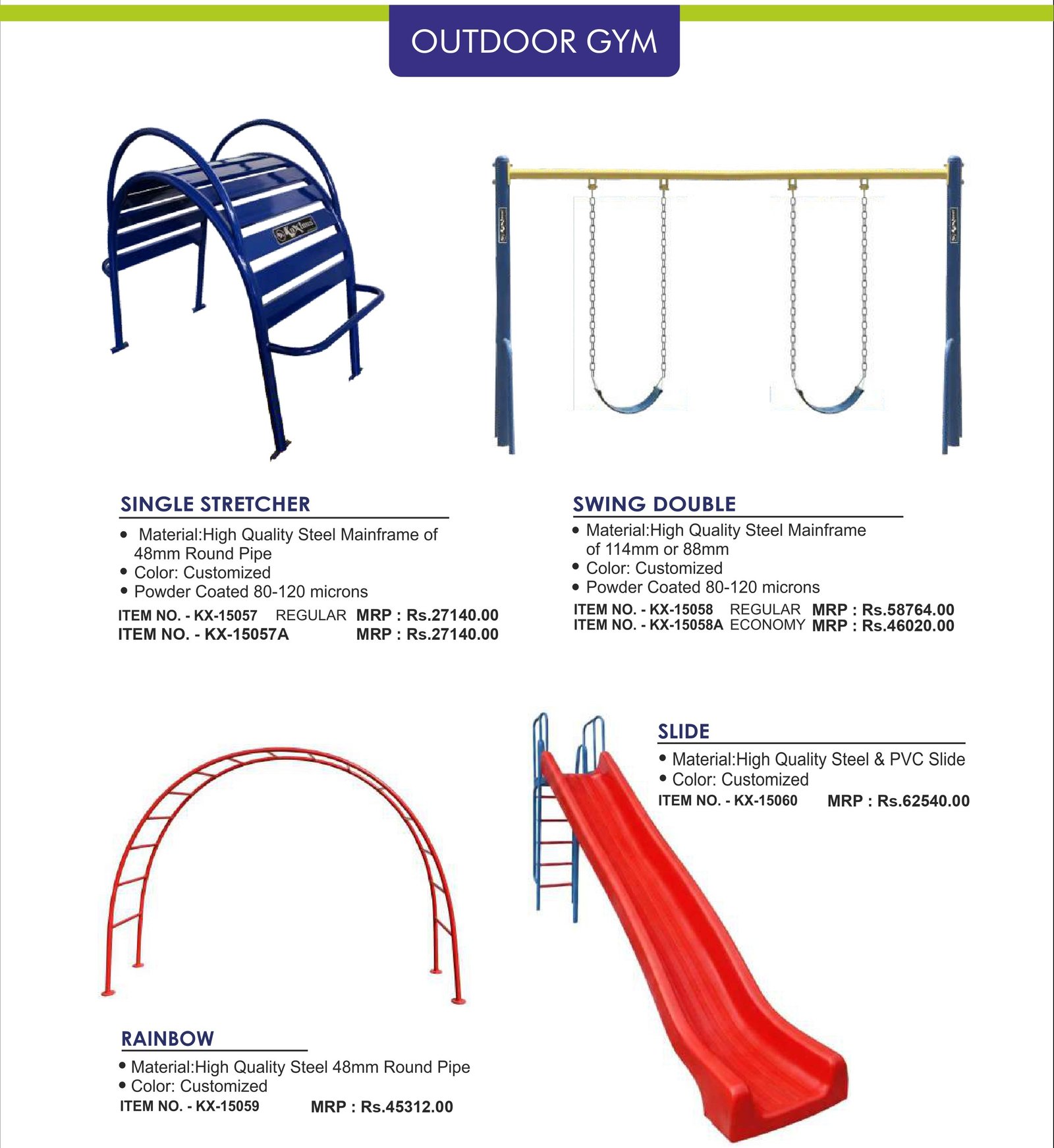

_pages-to-jpg-0211.jpg)
We manage the entire installation lifecycle, from Dialux planning and foundation casting to pole erection, luminaire mounting, and panel wiring.
The engineering of a safe playground begins with concrete base preparation. We cast a stable subfloor with proper slope parameters to prevent rainwater accumulation. We lay a dual-layer seamless EPDM rubber floor over the concrete, securing it with polyurethane binders.
The multi-activity play stations are built with galvanized steel structural posts, bolted deep into concrete using anchor fasteners. All structural connections are covered with protective plastic caps to prevent scratch hazards, and all slide components feature smooth joint seams.
To prevent fall injuries, we plan safety zones around swings and slides, maintaining a minimum clearance boundary of 1.5 to 2.0 meters, free of hard obstacles.
Frames built from 3.0mm thick steel tubes, hot-dip galvanized and finished with outdoor polyester powders to resist weather.
Sealed stainless steel bearings packed with waterproof grease, preventing dirt entry and pivot lockups.
Calculated lever movement pathways that utilize user body weight for resistance, removing high-risk stack plates.
Impact-attenuating rubber wet-pour flooring placed under stations, protecting users from dynamic fall impacts.
Weatherproof metal boards displaying usage guidelines, target muscle groups, and emergency safety contacts.
Base brackets bolted using heavy fasteners embedded in concrete footings, resisting structural lever strain.
Designed for high-traffic municipal parks. Focuses on low-maintenance bodyweight trainers, clear signs, weather protection, and EPDM safety pathways.
Focuses on bodyweight resistance training. Features pull-up bars, parallel bars, wall bars, and gymnastic ring frames for strength athletes.
Equipped with special chest presses and hand cycles designed for wheelchair users and seniors, supporting health for all.
We manage the entire construction process from site inspection to final handover, ensuring every step meets our strict quality standards.
We work with the client to determine gym park capacity, user demographics, and equipment selection.
We inspect soil bearing capacities and drainage lines before casting concrete support footings.
We check site dimensions against EN 16630 safety rules, planning clear safety zones around stations.
We model the fitness park in 3D, design EPDM floor paths, and optimize safety clearances.
We detail the anchor bolts, support steel frame sizes, machine spacing, and safety gate layouts.
We calculate static and dynamic loads for concrete steps and steel brackets under weight stress.
We select high-grade steel, polyurethane padding, high-tensile cables, and DMX-controlled LED fixtures.
We secure machines, align pulley tracks, test cable tension levels, and mount protective steel guards.
We test mechanical movement pathways, check weight stack travel, and check cable safety loads.
We run a final safety walk-through, checking bolt torque levels, cable tension, and stack guards.
We hand over the new outdoor fitness park layout, along with maintenance manuals and safety certifications.
Heavy-wall structural carbon steel pipes (minimum 3.0mm thickness) hot-dip galvanized to resist rusting.
Double-shielded stainless steel ball bearings packed with waterproof grease, preventing dirt entry.
High-impact UV-stabilized LLDPE plastics. Resistant to sun chalking and structural cracking.
Virgin EPDM rubber granules mixed in colors, offering high UV resistance and excellent elasticity.
Grade 304 stainless steel bolts covered with soft plastic caps, preventing skin scrape hazards.
Pure polyester powder coating baked at high temperature, protecting metal frames from outdoor corrosion.
| Parameter | Value / Specification | Standards Compliance |
|---|---|---|
| Support Post Diameter | 114mm (Standard) / 3.0mm thickness profiles | EN 16630 structural safety codes |
| Rust Protection | Hot-dip galvanization + polyester powder coat | ISO 1461 (galvanizing standard) |
| Bearing Seals | Sealed dust-proof and waterproof stainless steel | ISO 604 guidelines |
| EPDM Floor Thickness | 20mm to 36mm (dependent on station fall heights) | EN 1177 / EN 16630 safety standards |
| Fall Safety Clearance | 1.5 meters minimum open space around stations | EN 16630 safety guidelines |
| Max User Weight | 120 kg per fitness station | EN 16630 load testing compliance |
| Footrest Pedals | Non-slip textured aluminum plate / LLDPE inserts | EN 16630 slip resistance standards |
| Expected Service Life | 10+ Years (outdoor weathering) | Design life guidelines |
| System Warranty | 2 Years comprehensive warranty | Standard project guidelines |
Fitted to meet EN 13200 parameters, ensuring safe exit access widths and high-load safety guardrails to protect spectators.
The UV-stabilized materials and hot-dip galvanized steel brackets prevent chalking, rust, and cracking under hot sun and heavy rain.
Our retractable bleacher systems slide away against the wall, allowing you to use court space for multiple sports.
Tip-up gravity hinges widen pathways naturally when empty, easing crowd movements during matches.
Blow-molded double-skin structures resist high impacts, scratching, and vandalism in public arenas.
The curved seat shapes support proper posture, ensuring a comfortable experience during long matches.
Elite outdoor fitness parks require strict compliance with international safety codes. Our outdoor gym equipment is designed and constructed to meet **European Standard EN 16630** (Permanently installed outdoor fitness equipment) requirements.
EN 16630 parameters define safety zone boundaries, trap prevention, maximum load capacities, self-lubricating bearings, and corrosion testing. Satisfying these specifications is necessary to ensure safety in public parks.
Our structural and mechanical systems are tested by third-party inspectors to ensure compliance with playground codes, providing a safe, durable, and code-compliant outdoor gym environment.
Following a standard maintenance routine preserves the finish and keeps the playground posts stable for years.
Checking swing chain links weekly, washing plastic components, and sweeping debris.
Checking post anchor bolt torque, evaluating steel powder finishes, and inspecting EPDM wear.
Replacing old metal swings with plastic rotomolded panels, repairing EPDM tears, and adding sensory elements.
Our engineers bring over 15 years of experience in structural safety design and seating layout installation.
We import certified, high-impact HDPE chairs and galvanized support brackets directly from leading manufacturers.
We handle everything—from sightline calculations and bracket anchoring to chair mounting, guardrails, and walkway codes.
Calculating safety clearances, developing detailed layout schematics, and planning anchor specifications.
Drilling concrete floor plates, securing base frames, tensioning cables, and fitting landing mats.
Checking cable tension levels, safety walk-through, verifying landing shock parameters, and equipment handover.
Engineered for public safety, structural durability, weatherproof self-lubricating bearings, and EN 16630 standards.
